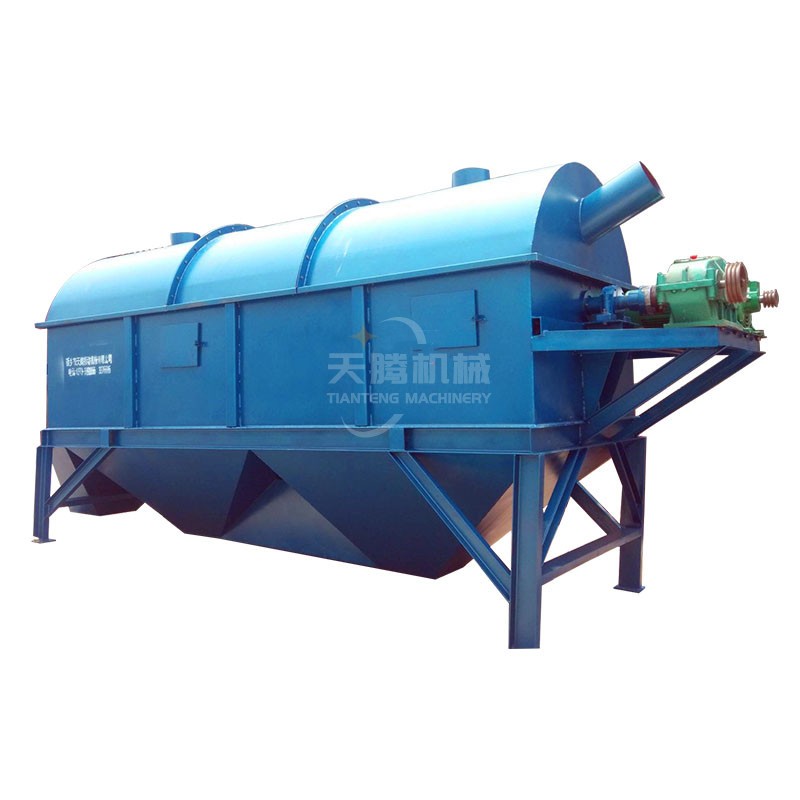

Trommel Screen
GTS Series Trommel Screens is trommel screen is a special screening equipment developed for power plant, coking plant, building materials, metallurgy, chemical, mining and other industries. it overcomes the problem of screen clogging caused by circular vibrating screen and linear screen in sieving wet materials, and improve the output and reliability of screening system.The trommels screen is compose of 5 parts: the hexagonal roller, frame, funnel, reducer and motor, which can be designed by the act
Feature & Benefits
1. Easy network change and le locking of orifices.
2. Lower noise and good performance.
3. Simple structure and maintain the convenience.
4. With high efficiency screening and lower cost.
5. Adoption of specially-made mesh can be high efficiency screening and long life service.
Drawing Picture
Application
According to different sizing specification, the number of hierarchical level could be from one to four material whose size is large than the screen mesh of the last part will be discharge from the outlet. During the process of operation, its movement is slowly and steady and installation is simple, sometime no need and special foundation and could be placed on smooth ground or floor. it is the most commonly used classification device for refractory material, coal, river sand and mixture of sand and stone.
Technical Parameter
型号 | 出力 | 功率 | 筛筒直径 | 筛筒长度 | 筛下粒度 | 入料粒度 (mm) | 外型尺寸 | 重量 |
GT815 | 50 | 3.0 | 1000 | 1500 | 0～100 |
≤300 | 2600×1400×1700 | 2200 |
GT1020 | 100 | 4.0 | 1000 | 2000 | 3390×1400×2140 | 2800 | ||
GT1225 | 160 | 5.5 | 1200 | 2500 | 4146×1600×2680 | 4200 | ||
GT1530 | 250 | 7.5 | 1500 | 3000 | 4460×1900×2820 | 5100 | ||
GT1545 | 350 | 11 | 1500 | 4500 |
≤400 | 5960×1900×3080 | 6000 | |
GT1848 | 450 | 15 | 1800 | 4800 | 6500×2350×4000 | 7500 | ||
GT2055 | 600 | 22 | 2000 | 5500 | 7500×2550×4800 | 9600 | ||
GT2265 | 800 | 30 | 2200 | 6500 | 8500×2750×5000 | 12800 | ||
Note: 1. The above parameters are based on the material with the maximum feed size of<300mm and the average particle size of about 80mm. 2. The anti-blocking cleaning device is set according to the user's requirements. 3. When the particle size below the screen is less than 3mm, the output will be reduced accordingly. | ||||||||
Real Case
Pre-sale Service
1. Help high-end customer to choose a suitable machine and develop local market.
2. We can offer an accurate quotation according to customer's model or drawings.
3. The drawing can be send if needed, we can help you design the whole line based on your model.
4. OEM and label service will be always available.
After-sale Service
1. 24 hours service online and fast response within 12 hours.
2. Quality warranty is 12 months from the shipping date.
3. Provide assembly instruction, technical date and related soft copies or video to ensure customer could install and debug by themselves.
