Impact Crusher

Impact Crusher

PF0807
15-30t/h
37kw
Impact CrusherThe Impact crush can handle all kinds of coarse, medium and fine materials (granite, limestone, concrete etc) with side length less than 500mm and compressive strength less than 350MPa,
Product Details

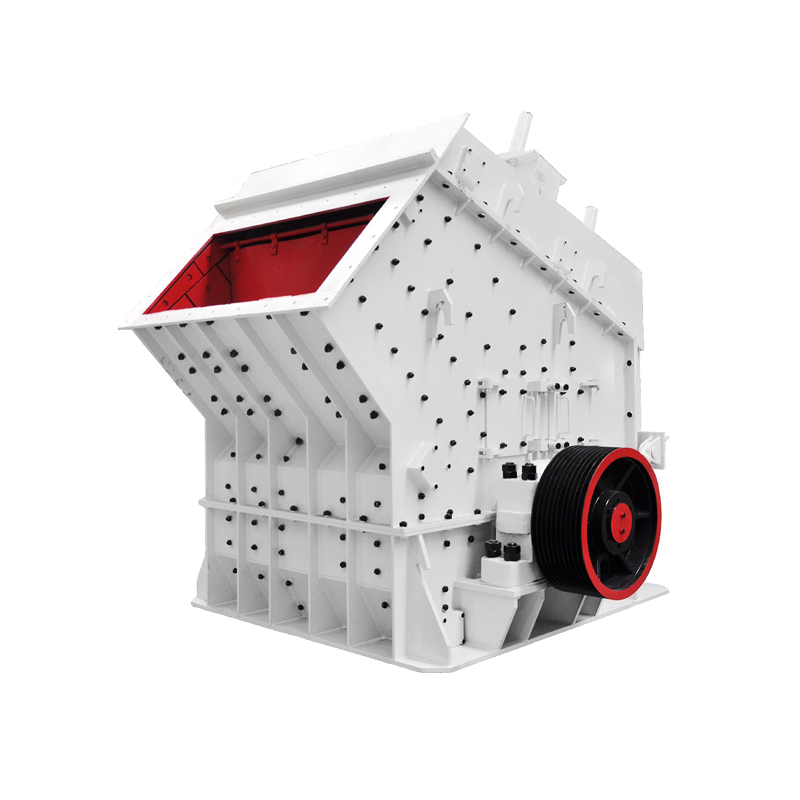

Impact Crusher

The Impact crush can handle all kinds of coarse, medium and fine materials (granite, limestone, concrete etc) with side length less than 500mm and compressive strength less than 350MPa, which are mainly used in Mining, Construction, Chemical, Electric Power, Metallurgy and other industries. This machine is not suitable for crushing surface waterthan 8-10% ore or viscous material. its output size can be adjusted, various crushing specifications.

Feature&Benefits

1. Special structure, keyless connection, high-chromium plate hammer, particular impact liner.

2. Less power consumption, high efficiency.

3. Large feed inlet, high crushing chamber, adapt to the material with high hardness.

4. High productivity, small mechanical wear and high comprehensive benefits.

5. Simple structure, small size, light weight, high capacity, low production costs.

6. Crushing ratio is large, up to 40, reduce the cost the equipment of the concentrator.

DetailsChart


Application


Technical Parameter

Model

Specification

(mm)

Openning Size

(mm)

Max size of material

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(kg)

PF-0807

Φ850*700

400*730

300

15-30

37

6500

PF-1007

Φ1000*800

400*830

300

30-60

55

10500

PF-1010

Φ1000*1050

400*1080

350

50-90

75

12500

PF-1210

Φ1250*1050

400*1080

350

70-130

110

15800

PF-1214

Φ1250*1400

400*1430

400

100-180

132

19800

PF-1315

Φ1320*1500

860*1520

500

160-250

200

24000

PF-1320

Φ1320*2000

860*2030

500

300-350

315

29000

Real Case


Pre-saleservices

1. Advice of model choice.

2. Export standard package or according to the requirements of the client.

3. View our Factory.

After-saleservices

To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
