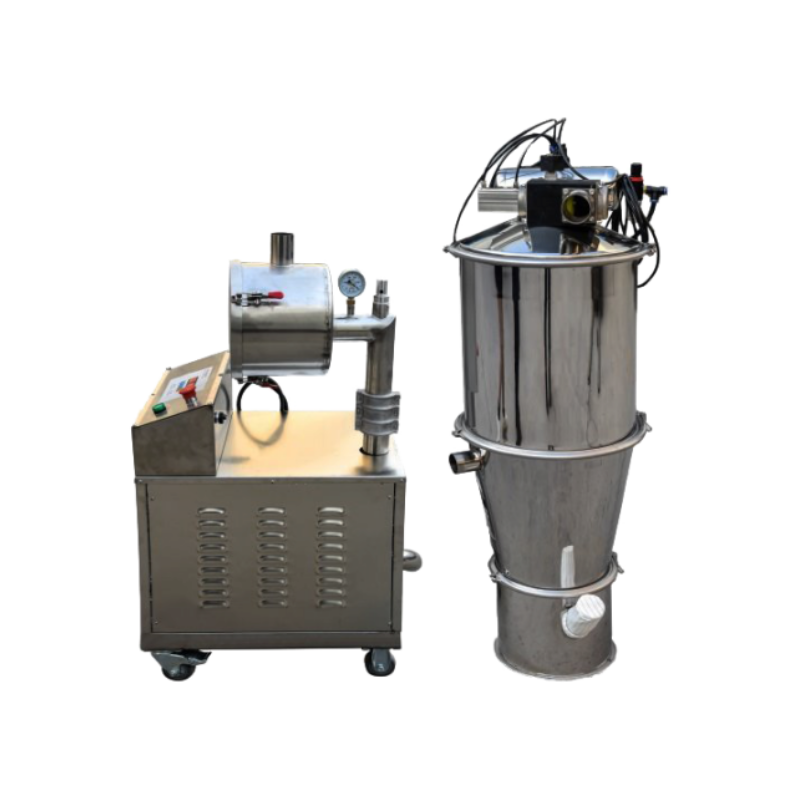

Vacuum Conveyor
Vacuum Conveyor (Vacuum Feeder) is a vacuum feeding machine by using pneumatic pump as vacuum source. it has advantages of fast feeding, long service period, operation, clean and healthy and in conformity with GMP requirement.
Feature & Benefits
1. Material can be customized by stainless steel SUS304 or SUS316 to meet GMP standard.
2. It's completely sealed for dust-free working condition.
3. This vacuum conveyor can feed powder or small granule product into sealed or open containers.
4. The machine boy is compact, reliable and operation is very easy.
Drawing Picture
Application
It's widely applied in packer, blender, tablet press machine, vibrating screen machine, capsule filling machine and Wet granular etc. Vacuum feeder (vacuum conveyor) is easy to operate. Feeding pipe begins to suck materials when press on the feeding switch, when the process of suction finished, vibration device vibrates or back flushing device blow backs prevent from occluding the filter. The two process are set and controlled by temporal sequence so that it can circulate for vibration and back flushing.
Technical Parameter
Model | Conveying capacity | Conveying distance | Power | Silo volume | Working pressure | Overall dimension of hopper | operation mode | |
Vertical | horizontal | |||||||
Kg/h | m | m | kw | L | (Mpa) | mm | ||
ZKS250-1 | ≤400 | 0-10 | 0-30 | 1.5 | 4.1 | 0.6-0.8Mpa | Φ213*811mm | intermittence |
ZKS350-3 | ≤1200 | 0-10 | 0-30 | 3 | 8.8 | 0.6-0.8Mpa | Φ290*1052mm | intermittence |
ZKS450-4 | ≤2500 | 0-10 | 0-30 | 5.5 | 32.8 | 0.6-0.8Mpa | Φ420*1514mm | intermittence |
ZKS450-6 | ≤2800 | 0-10 | 0-30 | 5.5 | 32.8 | 0.6-0.8Mpa | Φ420*1514mm | intermittence |
ZKS450-7 | ≤3200 | 0-10 | 0-30 | 7.5 | 50 | 0.6-0.8Mpa | Φ600*1500mm | intermittence |
| ZKS650-10 | ≤6000 | 0-10 | 0-30 | 11 | 290 | 0.6-0.8Mpa | Φ900*2128mm | continuation |
(Remark: Taking flour as an example, the conveying capacity is measured at a height of 3 meters and a level of 2 meters, for reference only)
Real Case
Pre-sale Service
1. Help high-end customer to choose a suitable machine and develop local market.
2. We can offer an accurate quotation according to customer's model or drawings.
3. The drawing can be send if needed, we can help you design the whole line based on your model.
4. OEM and label service will be always available.
After-sale Service
1. 24 hours service online and fast response within 12 hours.
2. Quality warranty is 12 months from the shipping date.
3. Provide assembly instruction, technical date and related soft copies or video to ensure customer could install and debug by themselves.
