Medium frequency vibration motor

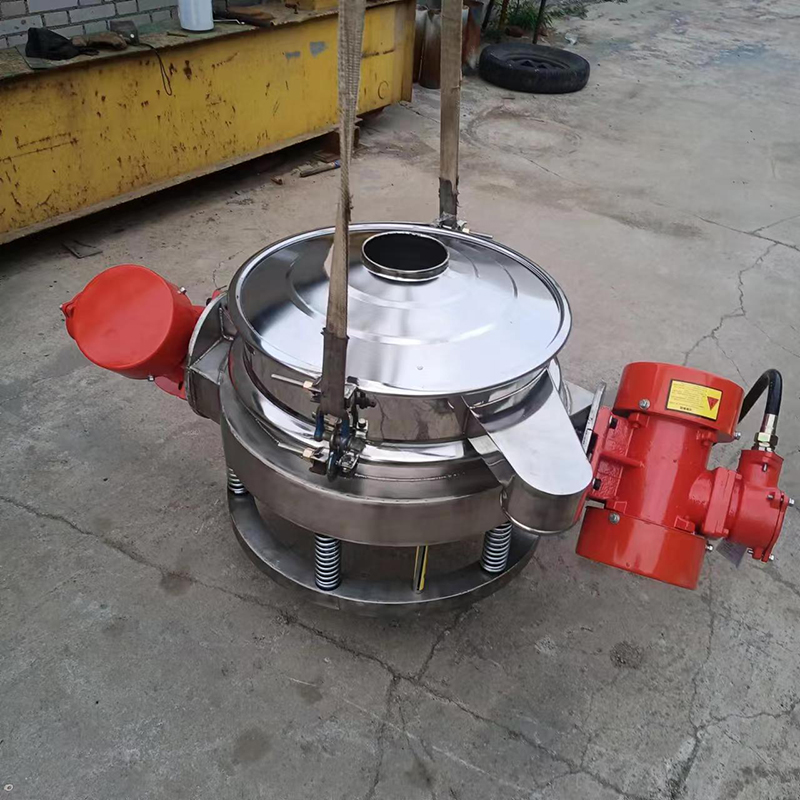

Medium frequency vibration motor is mainly used for circular vibration screen, ultrasonic vibration screen, rotary vibration mill, polishing machine, etc.
The vibration motor adopts a cast aluminum casing with good heat dissipation and stable performance. The core adopts high-quality copper wire winding to support continuous operation. The vibration force is adjustable and not easy to be damaged.
Schematic diagram of vibration motor:
Technical parameters of vibration motor:
Model | Vibration force | Power | Installation distance | overall dimension | Weight | Rotational speed |
TZS10-4 | 10000N | 1.1kw | φ230mm | φ16mm*6 | 40kg | 1500rpm |
TZS15-4 | 15000N | 1.5kw | φ250mm | φ18mm*6 | 35kg | 1500rpm |
RFQ:
Please tell us the size of the screening machine you need to install, and determine the installation size?
A: The installation distance is 250mm;
2. Please tell us what voltage you need?
B: Three-phase 380V50Hz;
