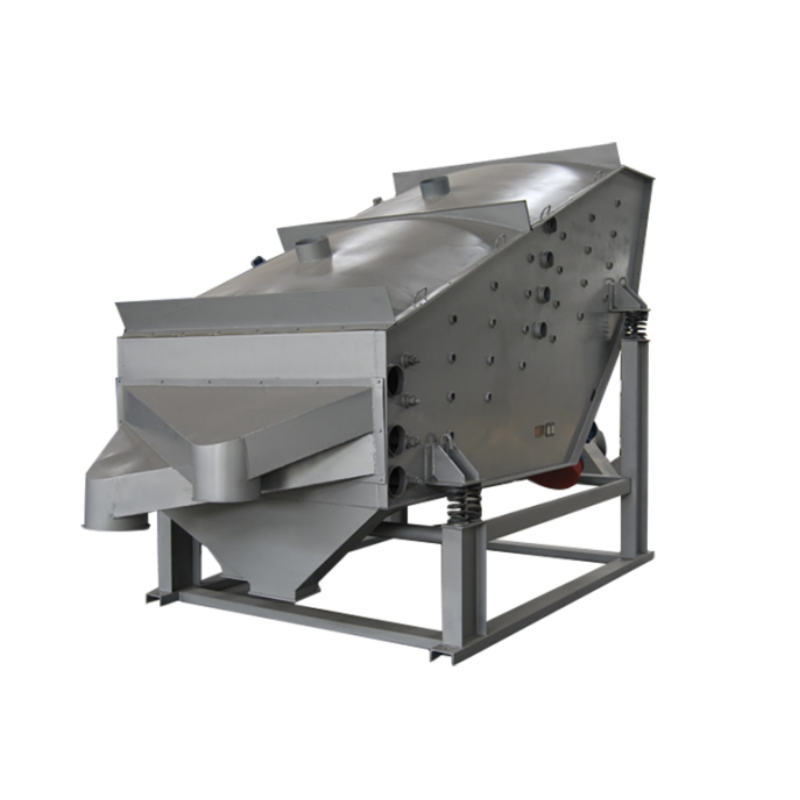

Probability Screen
Probability Screening is a kind of screening machine which can actively utilize the principle of probability screening. Generally speaking, the probabilistic screen is a vibration probabilistic screen whose screen surface is linearly vibrated by an exciting device. The main difference between the structure of the vibration probability screen and the flexible vibration screen is that the vibration probability screen adopts multi-layer (generally 3-6 layers), large inclination angle (generally 30-60 degrees), and large sieve hole (sieve hole size is 2-10 times the separation size).
Feature & Benefits
1. Multi-stage classification.
2. High cost performance.
3. Unique and environment-friendly design.
4. Longer life.
5. Lower noise.
6. The screening speed is fast.
7. The screen hole is not easy to be blocked.
Application
It has been sucessfully to metallurgical, building material and coal industries, the material size will be between from 10mm to 0.6mm.
Technical Parameter
Model | Sieve | Granule Size （mm） | Driving motor | Frequency (mn-1) | Double amplitude (mm) | Productivity (t/h) | |||||
Layer | structure | Mesh size (mm) | Screen surface area (㎡) | Screen inclination | Model | Power （kw） | |||||
GLS0615 | 2-8 | Woven mesh | 0-50 | 0.9n | 5-30 | ≤50 | YZS15-6 | 2×1.1 | 960 | 5-8 | 15-50 |
GLS0820 | 1.6n | YZS20-6 | 2×1.5 | 15-50 | |||||||
GLS1018 | 1.8n | YZS30-6 | 2×2.2 | 30-120 | |||||||
GLS1020 | 2.0n | YZS30-6 | 2×2.2 | 30-100 | |||||||
GLS1224 | 2.9n | YZS type vibration motor or Y series three-phase asynchronous motor | 2×2.2 | 30-100 | |||||||
GLS1521 | 3.2n | 2×3.7 | 30-100 | ||||||||
GLS1530
| 4.5n | 2×3.7 | 30-160 | ||||||||
GLS1620 | 3.2n | 2×3.7 | 30-160
| ||||||||
GLS1636 | 5.8n | 2×3.7 | 30-160 | ||||||||
GLS1630 | 5.4n | Y132M-6 | 2×5.5 | 30-180 | |||||||
GLS1845 | 8.1n | Y132M-6 | 2×5.5 | 30-180 | |||||||
GLS1830 | 6.0n | Y132M-6 | 2×7.5 | 50-200 | |||||||
GLS2045 | 9.0n | Y132M-6 | 2×7.5 | 50-200 | |||||||
GLS2048 | 10.1n | Y160L-6 | 2×11 | 50-200 | |||||||
Real Case
FAQ
Q1: How to solve the problem of blocking mesh?
All of most vibrating screen adopts bouncing ball and PU ring below every deck to cleaning screen surface, except the ultrasonic vibrating screen adopts ultrasonic cleaning systerm.
Q2: How to seal the machine?
Between two decks, it's adopt silica gel ring to seal. Then the clamp would lock two decks tightly with the extended copper nut.
Q3: Could this machine be refitted and designed technology to suit our production line?
Yes. All of machines in our factory could be customized by client's specific requirement such as the height from outlet to ground, the inlet shape & outlet shape, and the gate design on first deck. and the gate design on first deck.
Q4: How can i get the spare parts for machine?
The matched spares, such as seal ring, bouncing ball, screen plate, clamp screws and nut could be ordered one set or more as customer's need.
