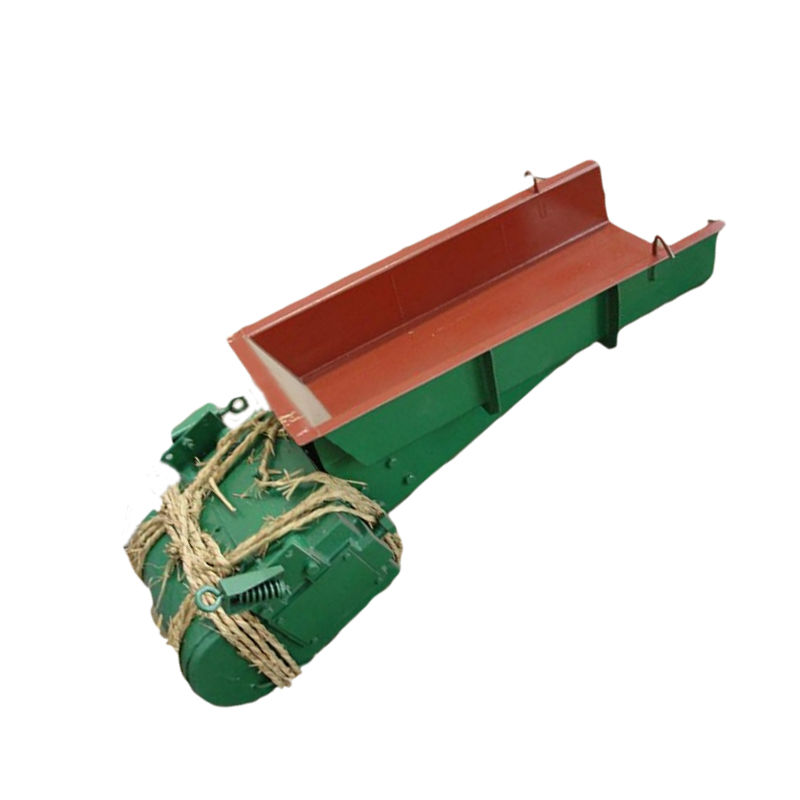

Ectromagnetic Vibrating Feeder

Ectromagnetic Vibrating Feeder

GZ1-11
3000r/min
0-2mm
5-1400kg/h
0.06-11kw
Electromagnetic Vibrating FeederElectromagnetic vibration feeder is a kind of linear direction feeding equipment. it can realize the quantitative feeding and transport the bulk, granular, Powder mater
Product Details

GZG给料机_副本.jpg微信图片_20201005173145.jpgElectromagnetic Vibrating Feeder

Electromagnetic vibration feeder is a kind of linear direction feeding equipment. it can realize the quantitative feeding and transport the bulk, granular, Powder materials, the feeding process is continuous and controlled at any time.

Working Principle

The electromagnetic vibrating feeder using Electromagnetic driving device to make materials to reciprocate on dip direction. when the vertical component of accelerated speed of feeder exceeds accelerated speed, material are thrown upward and leap forward in the form of parabola. it's takes 1/5 second to finish the rising and falling. The chute vibrate for one time and subsequently the materials are tossed for one time. The chute vibrate at a frequency 3000/min. Correspondingly, material are tossed upward and leap forward. So materials can continuously and uniformly moving forward and quantitative feeding is achieved.

Feature & Benefits

1. GElectromagnetic vibrating feeder: Small size, light weight, little lubrication, easy maitenance, low operation cost.

2. Uniform feeding, good performance, stable vibration, long service life.

3. Closed structure without dust pollution.

4. Smart design, less wear of feed chute.

Drawing Picture



Application

It's successfully used in Light Industies, Chemical Industry, Building Materials, Grain Processing, Mineral Separation, Electric Power, Food and other industries. In the process of pre-deteminded processing of powdered and granular materials where centralized and automatic control are achievable.



Technical Parameter

Type

Model

Capacity(t/h)

Feeding Size

(mm)

Amplitude

(mm)

Frequency(r/m)

Voltage(V)

Current(A)

Active

Power

(kw)

Overall

Weight

(kg)

level

-10

Working

current

Token

current

Basic

Type

GZ1

5

7

50

1.75

3000

220

1.34

1.0

0.06

73

GZ2

10

14

50

3.0

2.3

0.15

146

GZ3

25

35

75

4.58

3.8

0.2

217

GZ4

50

70

100

8.4

7

0.45

412

GZ5

100

140

150

12.7

10.6

0.65

650

GZ6

150

210

200

1.5

380

16.4

13.3

1.2

1250

GZ7

250

350

300

24.6

20

3

1900

GZ8

400

560

300

39.4

32

4

3000

GZ9

600

840

350

47.6

38.6

5.5

3200

GZ10

750

1050

500

39.4*2

32*3

4*2

6000

GZ11

1000

1400

500

17.6*2

38.6*2

5.5*2

7000

Real Case


FAQ

Q1: What's feeding material name? Bulk density (kg/m³and water content (%)?

EM: Bulk, Granular, Powder materials.......

Q2: How much handing capacity of Electromagnetic vibration feeder as you want?

0.5t/h, 10t/h.....

Q3: What's local Voltage & Frequency in your city?

Various power voltage: 110V/200V/240V/380V/415V/450V/550V

Q4: What's material for machine as your need?

A. Stainless steel 304

B. Carbon Steel Q235

C. Touching parts SUS304
